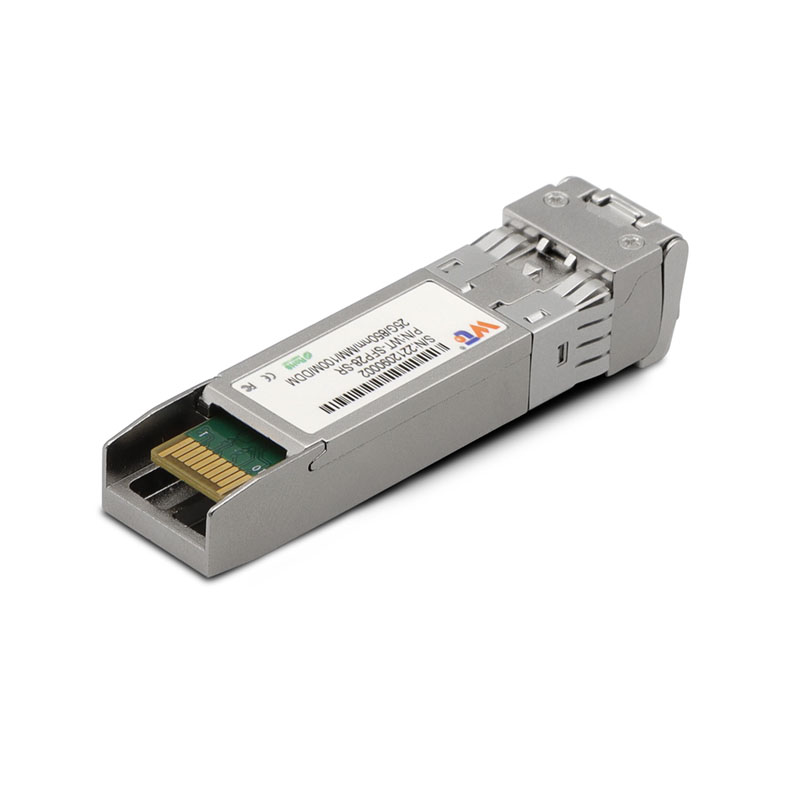

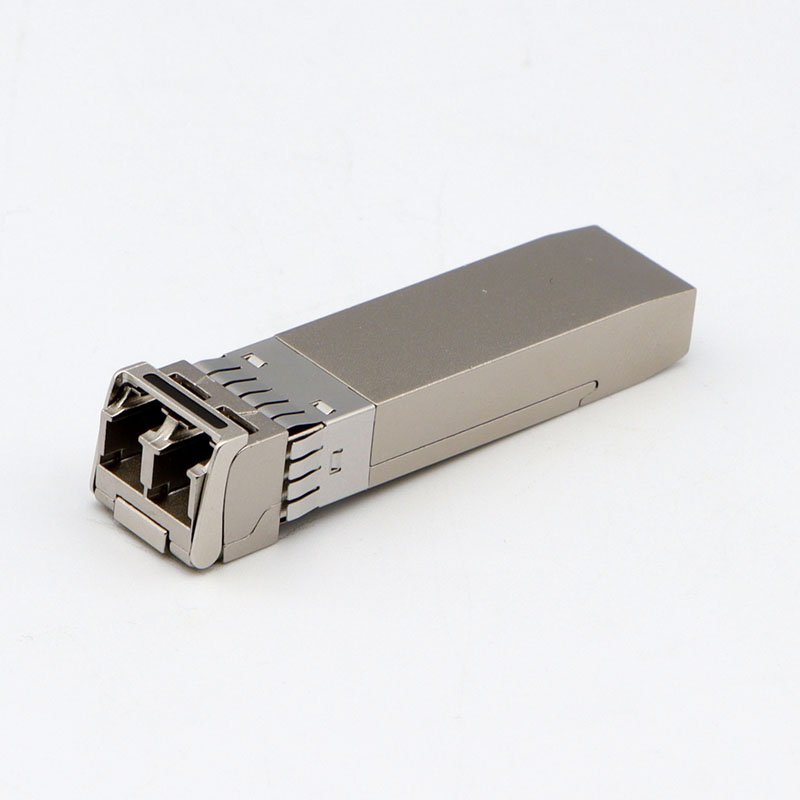

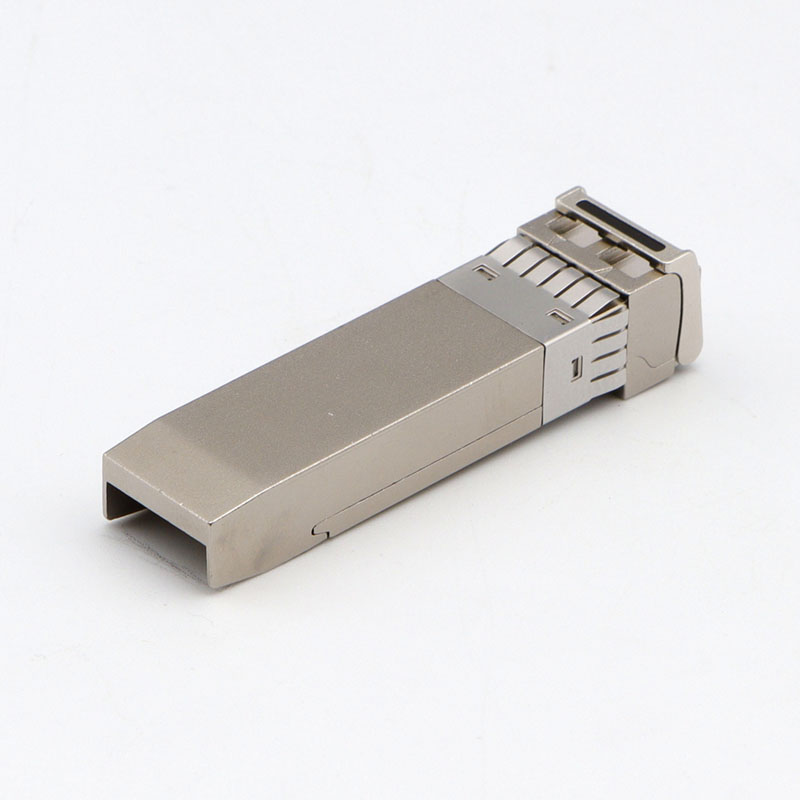

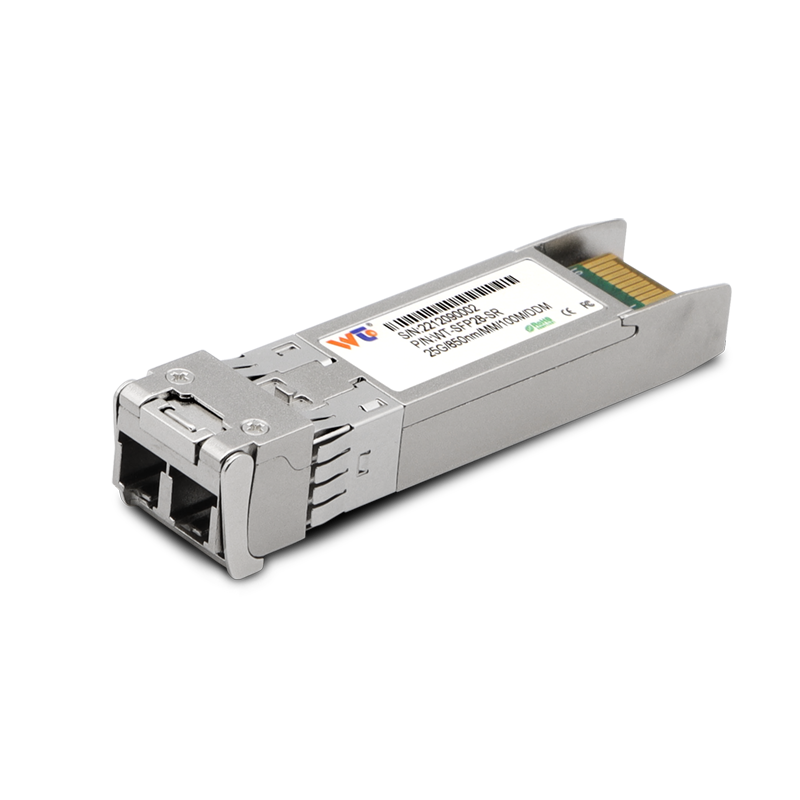

WT SFP Transceiver Module,WT-SFP28-SR,25Gb/s SFP28 SR Transceiver, 850nm, up to 100m,,Commercial grade

US$
61.71
 FS P/N: WT-SFP28-SR
123Sold 99Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
3-Year Warranty
3-Year Warranty
-
+
Product Highlights

  • Hot pluggable SFP28 form factor

  • Supports 25Gb/s data rate

  • 850nm VCSEL transmitter PIN photo-detector

  • Maximum link length of 100m on OM4 MMF

  • Operating environment temperature 0 ~ 70℃

  • Internal CDR on both Transmitter and Receiver channel

  • Duplex LC receptacle

  • Single 3.3V power supply

  • Power dissipation<1W


Center Wavelength850nm
Storage Temperature0－70℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1W
Data Rate25Gbps
Average Output Power-8.4-2.4dBm
Extinction Ratio（Er）>3.5dB
OMA Sensitivity≥-10.2dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty3 Years


  • Connectivity Solutions
  • Features

  • Hot pluggable SFP28 form factor

  • Supports 25Gb/s data rate

  • 850nm VCSEL transmitter PIN photo-detector

  • Maximum link length of 100m on OM4 MMF

  • Operating environment temperature 0 ~ 70℃

  • Internal CDR on both Transmitter and Receiver channel

  • Duplex LC receptacle

  • Single 3.3V power supply

  • Power dissipation<1W



  • Reviews (99)
No reviews yet
  • Resources
25G SFP28-SR
WT SFP Transceiver Module,WT-SFP28-SR,25Gb/s SFP28 SR Transceiver, 850nm, up to 100m,,Commercial grade

WT-SFP28-SR

US$61.71
