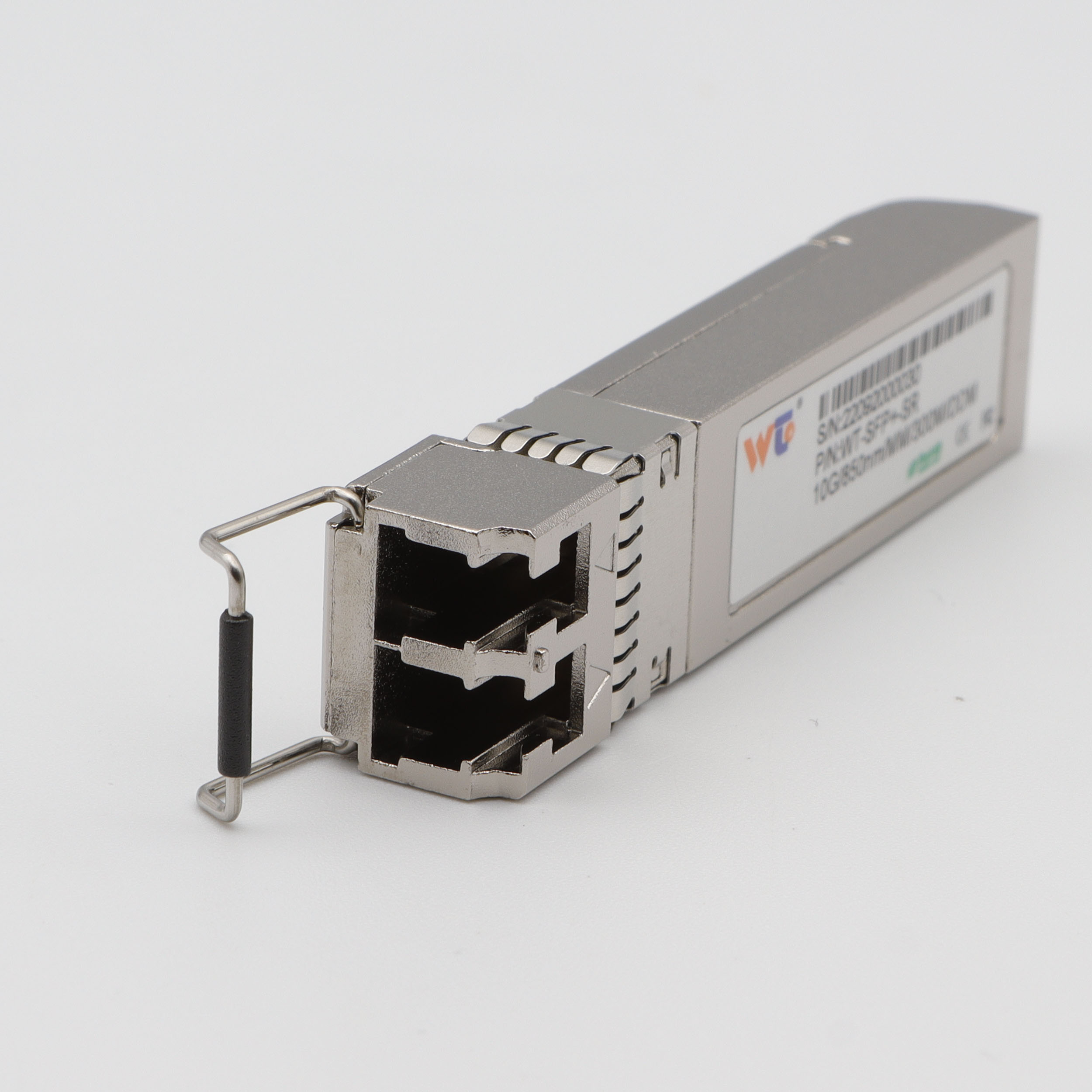

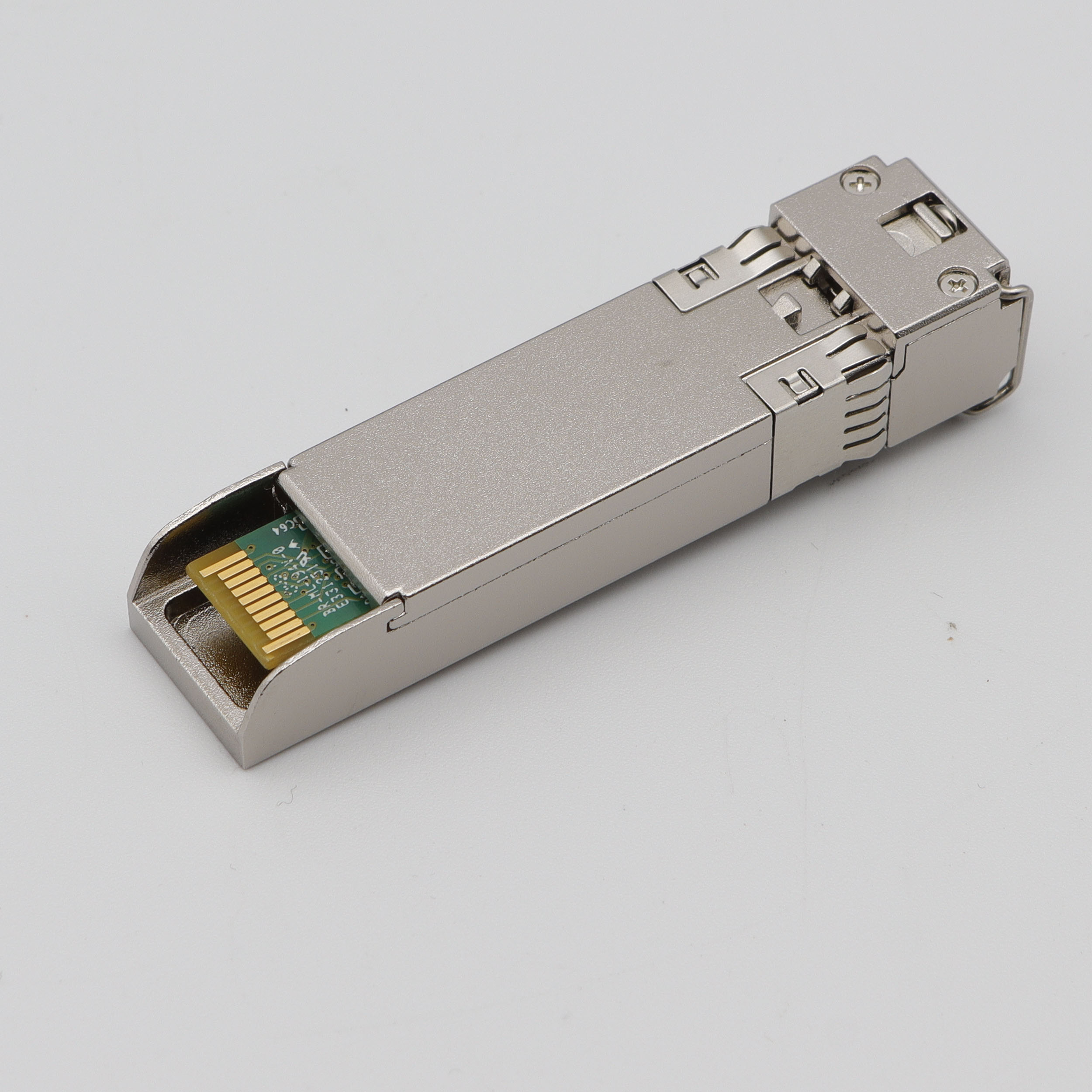

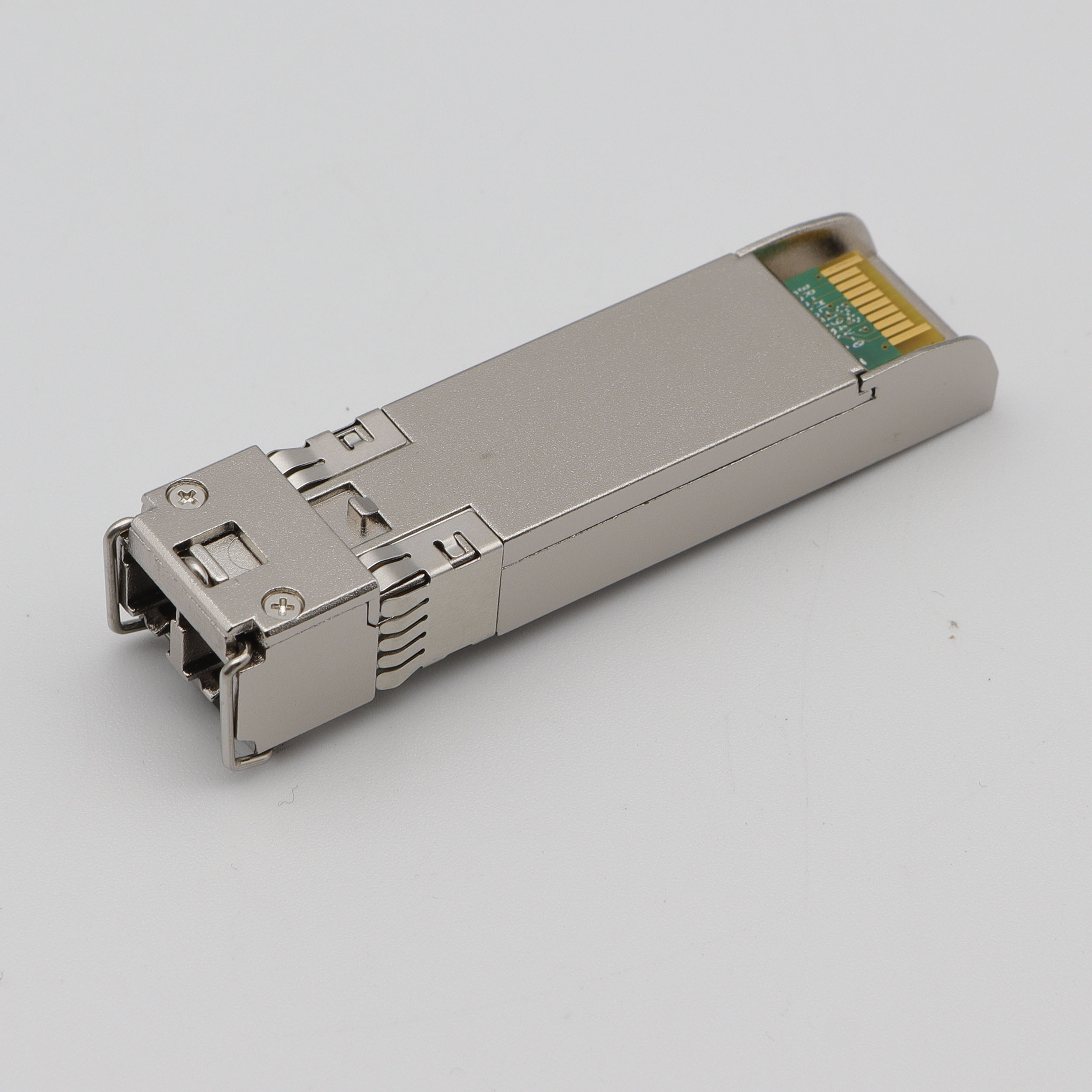

WT SFP Transceiver Module,WT-SFP+-SR,10GBase-SR SFP+ Transceiver, 10G 850nm MMF, up to 300 meters,Commercial grade

US$
12.34
 FS P/N: WT-SFP+-SR
123Sold 99Reviews 185Questions
shipping
Shipped from Shenzhen HQ Warehouse
delivery
Free Shipping
Products and Project Inquiry
30-Day Returns
30-Day Returns
30-Day Exchange
30-Day Exchange
3-Year Warranty
3-Year Warranty
-
+
Product Highlights

  • SFP+ package with LC connector

  • 850nm VCSEL Laser and PIN photo detector

  • Up to 300m transmission on 2000MHz-km MMF

  • Up to 11.3Gbps Data Links

  • Power dissipation < 1W

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825 compliant

  • Compatible with RoHS

  • Compatible with SFF8472


Center Wavelength850nm
Storage Temperature0－75℃
Operating Relative Humidity5-95%
Supply Voltage3.3V
Power Dissipation<1W
Data Rate10.3125Gbps
Average Output Power-5-0dBm
Extinction Ratio（Er）>3.0dB
Receiver Sensitivity（Rsen）≥-11.5dBm
DDMSupported
ompatible brandsCisco\HP\H3C\HUAWEI
Warranty3 Years


  • Connectivity Solutions
  • Features

  • SFP+ package with LC connector

  • 850nm VCSEL Laser and PIN photo detector

  • Up to 300m transmission on 2000MHz-km MMF

  • Up to 11.3Gbps Data Links

  • Power dissipation < 1W

  • LVPECL compatible data input/output interface

  • Low EMI and excellent ESD protection

  • laser safety standard IEC-60825 compliant

  • Compatible with RoHS

  • Compatible with SFF8472



  • Reviews (99)
No reviews yet
  • Resources
WT-SFP+-SR
WT SFP Transceiver Module,WT-SFP+-SR,10GBase-SR SFP+ Transceiver, 10G 850nm MMF, up to 300 meters,Commercial grade

WT-SFP+-SR

US$12.34
